1.需求

公司有一套系统，其中license数量(加密存储)有几项值是客户购买才能获得的，正常流程为客户购买，运维部准备一个UKEY，由系统灌注license相关数据送到客户现场，客户将UKEY插入服务器进行授权。

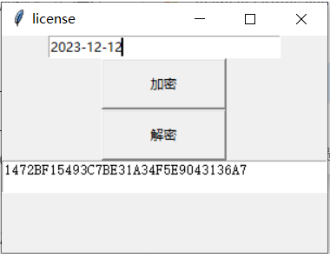

现需要开发一个小工具，供测试使用，测试输入liciense几项数据，生成对应密文数据。以下为另一个产品小工具截图

2.实现

上述图片为python开发，由于本人不会python，也不想做成黑色命令框那种。于是找了下go的gui库，发现fyne.io/fyne/v2使用率较高，简单看了下介绍感觉不错，便决定使用该库。

2.1解决中文乱码问题

func init() {
    //设置中文字体:解决中文乱码问题
    _ = sm4.SetIV(ivCbc)

    fontPaths := findfont.List()
    for _, path := range fontPaths {
       if strings.Contains(path, "msyh.ttf") || strings.Contains(path, "simhei.ttf") || strings.Contains(path, "simsun.ttc") || strings.Contains(path, "simkai.ttf") {
          os.Setenv("FYNE_FONT", path)
          break
       }
    }
}

2.2 数字和文本框一行显示

重点为layout.NewFormLayout()

pcEntry := widget.NewEntry()
pcEntry.SetPlaceHolder("输入pc端license数量")
pcLabel := widget.NewLabel("    PC端数量:")
pcContainer := fyne.NewContainerWithLayout(layout.NewFormLayout(), pcLabel, pcEntry)

2.3 按钮居中

fyne.NewContainerWithLayout(layout.NewCenterLayout(), myButton)

2.4设置布局大小

fyne.NewContainerWithLayout(layout.NewGridWrapLayout(fyne.NewSize(500, 110)), resEntry)

2.5 代码

// Path:
// FileName: main.go
// Created by dkedTeam
// Author: GJing
// Date: 2024/2/22$ 17:16$

package main

import (
    "fmt"
    "fyne.io/fyne/v2"
    "fyne.io/fyne/v2/app"
    "fyne.io/fyne/v2/container"
    "fyne.io/fyne/v2/layout"
    "fyne.io/fyne/v2/theme"
    "fyne.io/fyne/v2/widget"
    "github.com/flopp/go-findfont"
    "os"
    "strconv"
    "strings"
)

func init() {
    //设置中文字体:解决中文乱码问题
    _ = sm4.SetIV(ivCbc)

    fontPaths := findfont.List()
    for _, path := range fontPaths {
       if strings.Contains(path, "msyh.ttf") || strings.Contains(path, "simhei.ttf") || strings.Contains(path, "simsun.ttc") || strings.Contains(path, "simkai.ttf") {
          os.Setenv("FYNE_FONT", path)
          break
       }
    }
}

// 打包命令：go build -ldflags="-H windowsgui" main.go
func main() {
    a := app.New()
    a.Settings().SetTheme(theme.DefaultTheme())
    myWindow := a.NewWindow("mck license授权工具，禁止外传!")
    myWindow.Resize(fyne.NewSize(400, 300))

    //手机端
    phoneEntry := widget.NewEntry()
    //myLayout.MinSize([]fyne.CanvasObject{phoneEntry})
    phoneEntry.SetPlaceHolder("输入手机端license数量")
    phoneLabel := widget.NewLabel("  手机端数量:")
    phoneContainer := fyne.NewContainerWithLayout(layout.NewFormLayout(), phoneLabel, phoneEntry)
    fmt.Println("---------", phoneContainer.Size())
    //PC端
    pcEntry := widget.NewEntry()
    pcEntry.SetPlaceHolder("输入pc端license数量")
    pcLabel := widget.NewLabel("    PC端数量:")
    pcContainer := fyne.NewContainerWithLayout(layout.NewFormLayout(), pcLabel, pcEntry)
    //类型 1永久2临时
    //licenseType := widget.NewEntry()
    //licenseType.SetPlaceHolder("final:永久，temp:临时")
    licenseTypeLable := widget.NewLabel("    授权类型:")
    //typeContainer := fyne.NewContainerWithLayout(layout.NewFormLayout(), licenseTypeLable, licenseType)
    typeSelect := widget.NewSelect([]string{"永久", "试用"}, func(s string) {
    })
    typeSelect.SetSelected("永久")
    typeContainer1 := fyne.NewContainerWithLayout(layout.NewFormLayout(), licenseTypeLable, typeSelect)

    //日期
    date := widget.NewEntry()
    date.SetPlaceHolder("YYYY-MM-DD(ex:2024-01-14)")
    dateLabel := widget.NewLabel("试用截止日期:")
    dateContainer := fyne.NewContainerWithLayout(layout.NewFormLayout(), dateLabel, date)

    //加密结果
    resEntry := widget.NewEntry()
    //myLayout.MinSize([]fyne.CanvasObject{phoneEntry})
    resEntry.SetPlaceHolder("mck 授权工具，仅限测试内容使用，禁止外传!!!" +
       "\n使用说明：" +
       "\n1.按提示输入需要加密的字段" +
       "\n2.点击按钮后生成对应字段对应密文" +
       "\n3.将生成的密文数据存储到数据库mck_config表对应字段,重启mck-server容器")
    //加密按钮，影响加密内容
    myButton := widget.NewButtonWithIcon("加密运算", theme.StorageIcon(), func() {

       var phoneEnNum, pcEnNum, typeEnNum, dateEnNum string
       if len(phoneEntry.Text) > 0 {
          phoneNum, _ := strconv.Atoi(phoneEntry.Text)
          phoneEnNum = LicenseCipher(phoneCbc, phoneNum)
       }
       if len(pcEntry.Text) > 0 {
          pcNum, _ := strconv.Atoi(pcEntry.Text)
          pcEnNum = LicenseCipher(pcCbc, pcNum)
       }
       typeStr := typeSelect.Selected
       if typeStr == "试用" {
          typeEnNum = SetLicenseStrValue("temp")
       } else {
          typeEnNum = SetLicenseStrValue("final")
       }
       if len(date.Text) > 0 {
          dateEnNum = SetLicenseStrValue(date.Text)
       }
       resEntry.SetText("license_phone:" + phoneEnNum + "" +
          "\n" + "license_pc:" + pcEnNum + "" +
          "\n" + "license_type:" + typeEnNum + "" +
          "\n" + "license_deadline_time:" + dateEnNum)
    })
    content := container.NewVBox(
       phoneContainer,
       pcContainer,
       typeContainer1,
       dateContainer,
       fyne.NewContainerWithLayout(layout.NewCenterLayout(), myButton),
       fyne.NewContainerWithLayout(layout.NewGridWrapLayout(fyne.NewSize(500, 110)), resEntry),
    )

    myWindow.SetContent(content)
    myWindow.ShowAndRun()
}

func LicenseCipher(key []byte, num int) string {
     return ""
}

func SetLicenseStrValue(v string) string {
    return ""
}

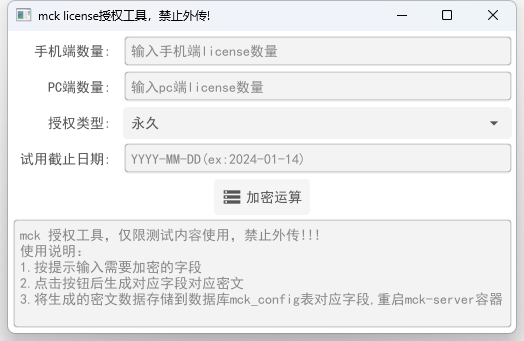

3.效果图
